Sunlit
Uniform colors and high contrast ratio
Low power consumption, designed for 24/7 operation
Super wide viewing angle for maximum viewability
Anti-UV modules prevent any deformation under direct sunlight
High Protection Grade of IP65

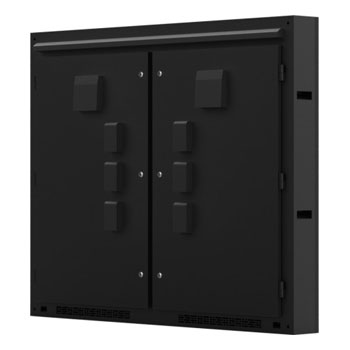

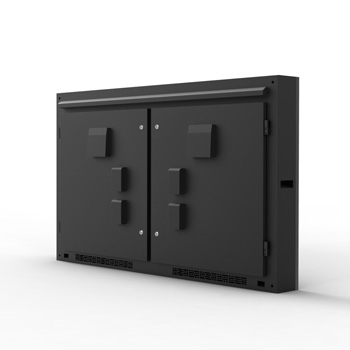

Protective and weatherproof cabinet designs ensure stable and reliable operations

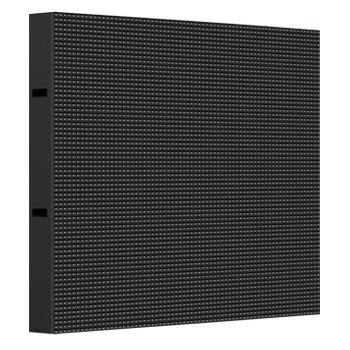

| Model | FS5 | FS6 | FS8 | FS10 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 5 | 6 | 8 | 10 |
| Brightness(nits) | ≥7000 | ≥7000 | ≥7000 | ≥7000 |
| Viewing Angle(deg.) | 140(Horizontal), 120(Vertical) | 140(Horizontal), 120(Vertical) | 140(Horizontal), 120(Vertical) | 140(Horizontal), 120(Vertical) |
| LED Configuration | SMD | SMD | SMD | SMD |
| Panel Size(mm) | 960(W)x960(H) | 960(W)x960(H) | 960(W)x960(H) | 960(W)x960(H) |
| Panel Resolution(pixels) | 192×192 | 160×160 | 120×120 | 144×96 |
| Cabinet Material | Aluminium/Iron | Aluminium/Iron | Aluminium/Iron | Aluminium/Iron |
| Panel Weight(kg) | ≤45/≤55 | ≤45/≤55 | ≤45/≤55 | ≤45/≤55 |
| Protection Grade(Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Serviceability | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Voltage(V) | AC110-AC240 | AC110-AC240 | AC110-AC240 | AC110-AC240 |
| Avg. Power Consumption (W/㎡) | 300(AC) | 300(AC) | 290(AC) | 350(AC) |
| Operating Tem/Humidity((℃/%RH) | 20~50/10-90 | 20~50/10-90 | 20~50/10-90 | 20~50/10-90 |
| Compliant Standard | CE FFCC RoHS | CE FFCC RoHS | CE FFCC RoHS | CE FFCC RoHS |
