Black Diamond
Product Features
More Flexible Matching:With an aspect ratio of 8:9, panels are easy to be pieced together to play standard 4:3 and 16:9 videos.

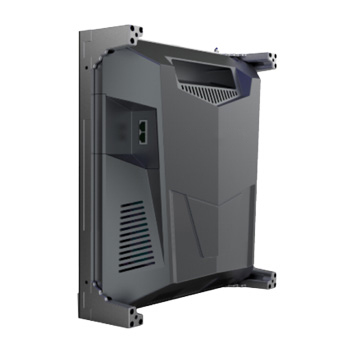

Seamlessness:Die-casting aluminum panel, high-precision design and CNC processing minimize the error within 0.05mm.
Long lifespan:Low-voltage power supply with high-efficiency causes little temperature rise, which helps to prolong the life of LED display in stable use.
Perfect Image: No flicker, no brightline or darkline ensures the LED display to take on more perfect image.
Industrialized Production:Patented technology, independent die sinking, precise welding and automatic processing all take the lead in LED industry.
Core Advantages
Color Uniformity: The LED display would present uniform color at all times with low power consumption and low temperature rise.
No Blackout during Use:Reliable communication-level power supply and rational power distribution system lead to stable and safe operation.
No Black Screen during Use:Constituted by loop transmission, intelligent switch, anti-hacker security and fault alarm, the most reliable data transmission mode is incorporated internally.
Safe Maintenance:It supports hot swapping, which is more safe and convenient for maintenance personnel.
| Model | V1.6 | V1.9 | V2.5 |
|---|---|---|---|
| Pixel Pitch | 1.6 | 1.9 | 2.5 |
| Pixel Density (Pixels/m2) | 350127 | 267078 | 155000 |
| Pixel Configuration | SMD LED | SMD LED | SMD LED |

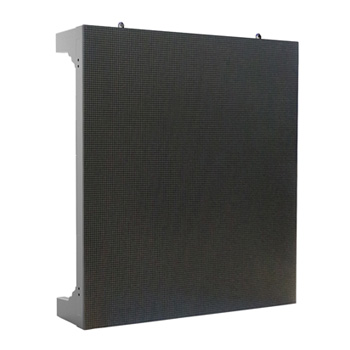

| Panel Size (mm) | 325(w) x 365(H) | 325(w) x 365(H) | 325(w) x 365(H) |
| Panel Type and Material | Die-Casting Aluminium | Die-Casting Aluminium | Die-Casting Aluminium |
| Panel Resolution | 192×216 | 168×189 | 128×144 |
| Weight (kg/pcs) | 4.5 | 4.5 | 4.5 |
| Brightness | 1250 | 1200 | 1200 |
| Max. Power Consumption | 1250 | 1200 | 800 |
| Avg. Power Consumption | 420 | 400 | 270 |
| Horizontal/Vertical Viewing Angle (Deg.) | 160/160 | 160/160 | 160/160 |
| Refresh Rate(Hz) | 1920 | 1920 | 1920 |
| Gray level (Bit) | 16 | 16 | 16 |
| Contrast Ratio | 3000:1 | 3000:1 | 3000:1 |
| Color Temperature (K) | 2000≤ TC≤ 9300 adjustable | 2000≤ TC≤ 9300 adjustable | 2000≤ TC≤ 9300 adjustable |
| Brightness Adjustable | Programmable/Auto/Manual | Programmable/Auto/Manual | Programmable/Auto/Manual |
| Protection Grade | IP30 | IP30 | IP30 |
