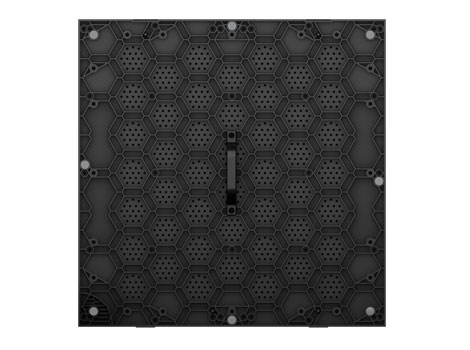

Diamond Series
Designed for Quick and Easy Installation

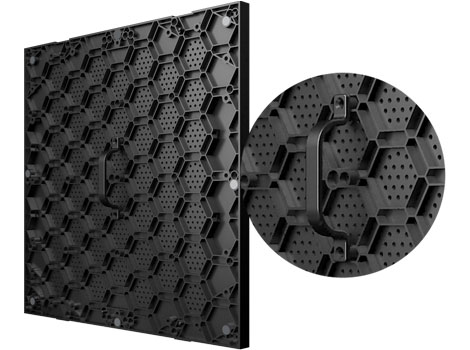

Fast locking mechanism
Dual Maintenance, Fanless design, Noiseless, Low Power Consumption
Vertical/Horizontal Viewing Angles up to 140 Degrees
Brightness Adjustable

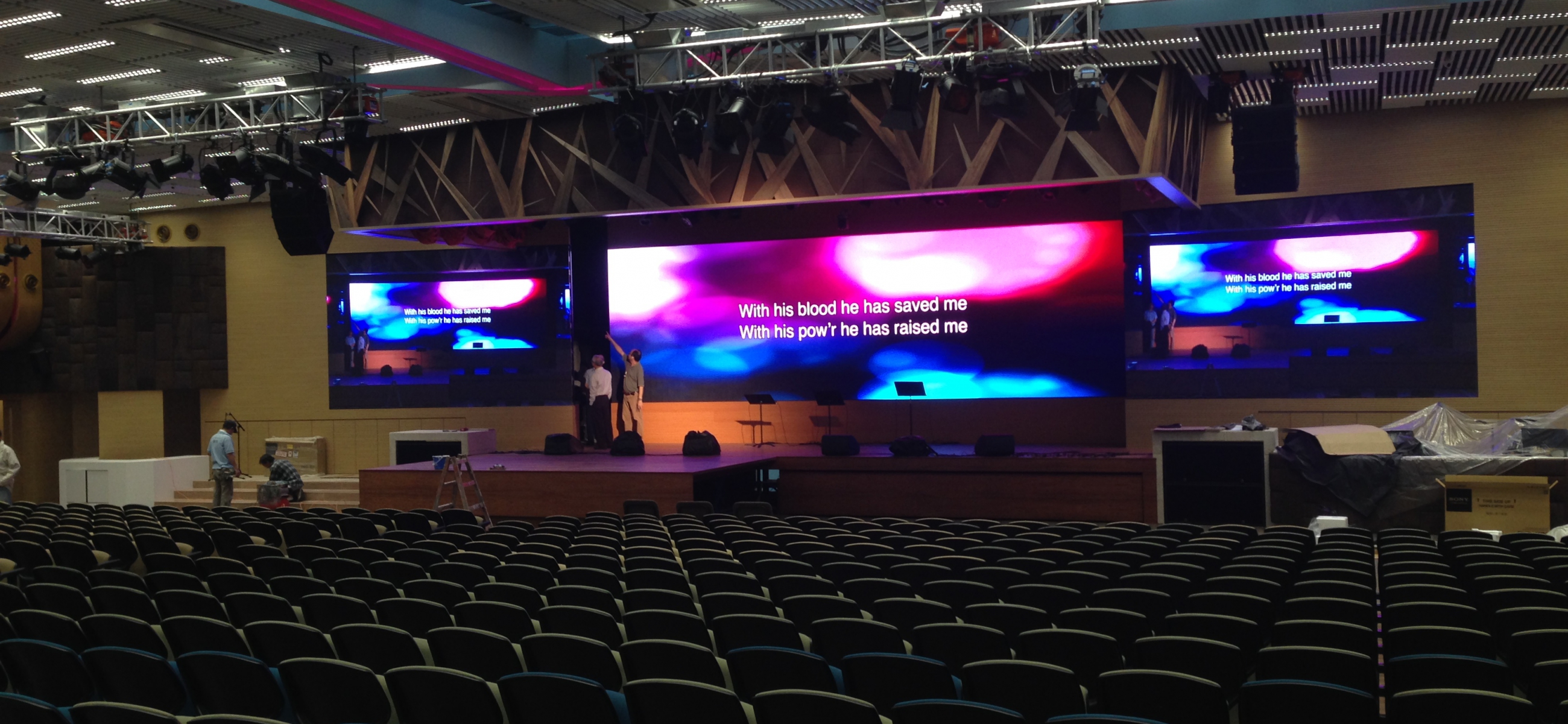

Suitable for all fixed installation applications
| Model | AH3.3 | AH4.0 | AH5.0 |
|---|---|---|---|
| Pixel Pitch (mm) | 3.3 | 4.0 | 5.0 |
| Resolution | 192×192 | 160×160 | 128×128 |
| Dimensions | 640x640x97 | 640x640x97 | 640x640x97 |

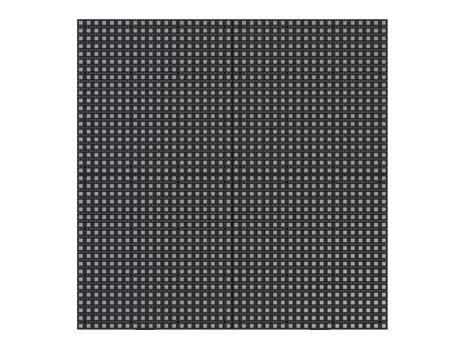

| LED Configuration | SMD2727 | SMD2727 | SMD2727 |
| Working Voltage | DC5V | DC4.2V | DC5V |
| Module Power | 50W | 42W | 75W |
| Cabinet Material | Die-cast Alumnium | Die-cast Alumnium | Die-cast Alumnium |
| Cabinet Weight(kg) | 13 | 12.5 | 14 |
| Viewing Angle | H:120 V:120 | H:120 V:120 | H:120 V:120 |
| Color Temperature (K) | 6500-8000 | 6500-8000 | 6500-8000 |
| Refresh Frequency (Hz) | 1920 | 1920 | 1920 |
